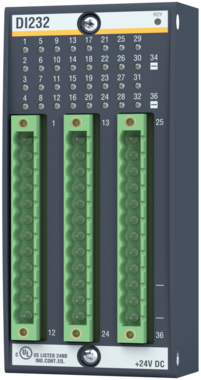

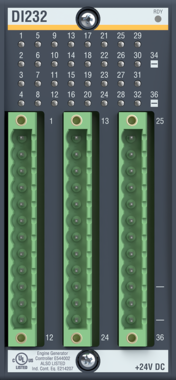

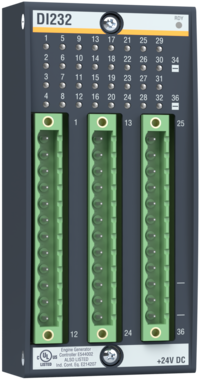

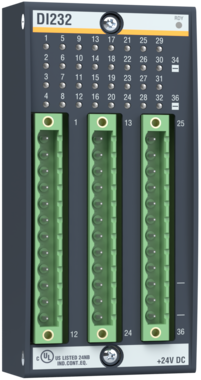

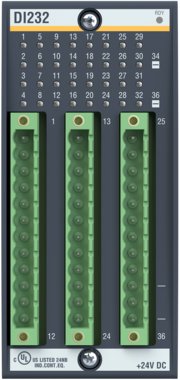

DI232/x

The digital input DI216, DI232, DI232 CC and DI232/np1 are used to connect up to 16 or 32 digital sensors to the M1 controller.

• Digital input modules with 16 or 32 inputs
• Current sinking logic > 2 mA acc. to EN 61132 type 1
• DI216, DI232, DI232 CC, DI232/np:
  Input voltage: nom. 24 VDC (18 to 34 VDC)
• Inputs 1 and 2 configurable as interrupt inputs
• Galvanic isolation of inputs from the system
• Status display for each channel via LED

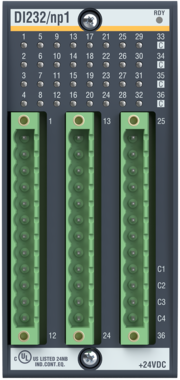

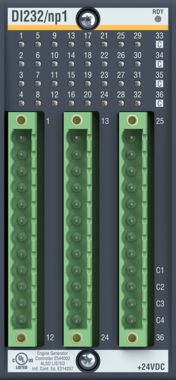

• Sink/ source inputs (DI232/np1)
