The operator terminals of the OT1300 series are a combination of state-of-the-art technology, flexibility, long-term availability and contemporary design. The large selection of screen diagonals, performance classes and mass storage options ensures an optimum price performance ratio.

Through the use of the 11. generation of Intel Core processors the OT1300 Series sets new standards. Performance bottlenecks in applications are now a thing of the past.

An industrially robust embedded operating system is provided in the form of Windows 10 IoT Enterprise. The units are supplied as standard with everything required for trouble-free operation of a web visualization software such as atvise®. Installation can be adapted individually to customer requirements and can be factory shipped already preconfigured to ensure efficient commissioning.

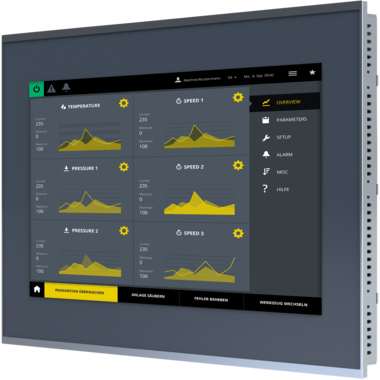

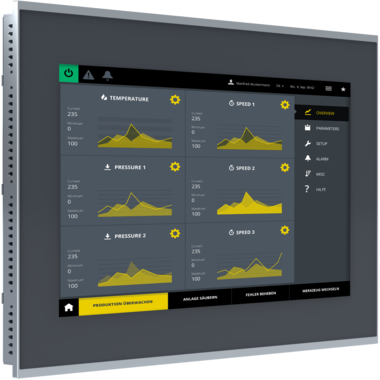

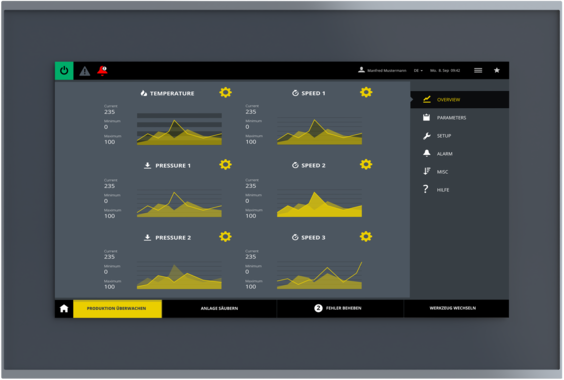

The latest devices of the OT1300 product series with projected capacitive multi-touch operation stand out on account of their new design and brilliant full HD display with 10.1″ to 21.5″ widescreen diagonals.

The use of industrially robust components throughout ensures long-term availability, a long lifespan and thus investment protection. The fan-free construction without any moving parts meets the most demanding requirements with regard to shock and vibration.



Features

  • Processor/RAM:
    Intel Celeron 3955U
    Intel Core i3-1115GRE
    Intel Core i7-1185GRE
    Intel Core i3-6100U
    Intel Core i5-6300U
    Intel Core i7-6600U
  • Ultra-fast CFast or SSD mass storage
  • Interfaces:
    2x GBit/s Ethernet
    2x USB 3.0
    2x USB 2.0
    1x USB-C
    1x HDMI
    (Additional interfaces can be added)
  • Standard operating temperature:
    0 to +60 °C fan-free
  • Operating system:
    Windows 10 IoT Enterprise
  • Extended temperature range on request

Approvals / Certificates

Datasheet

OT1300

OT1300 Operator Terminal EN
PDF - 370 Kb
OT1300 Operator Terminal EN
OT1300 Operator Terminal DE
PDF - 371 Kb
OT1300 Operator Terminal DE
