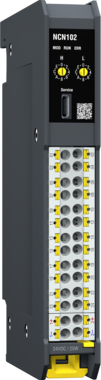

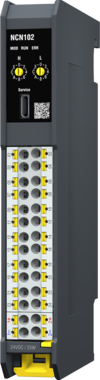

NCN102

The NCN102 node adapter maps the powerful and flexibly configurable M100 station to a standard CANopen interface. The operating modes of the M100 I/O modules are defined during the configuration and are available to both the Bachmann main device and also to main devices of other manufacturers. The CANopen synchonization features enables clock-synchronous sampling and processing of the I/O signals.

• CAN/CANopen fieldbus IO node adapter
• M100 standard connector (open wire)
• Address configuration: via 2 rotary switches, or via LSS service on CAN bus
• Baud rate setting: via rotary switches, or automatic detection
• Synchronization: CANopen sync consumer
• Maximum process image per station: 4.096 bytes
• Integrated power supply unit for module supply: 20 W
• Diagnostic LEDs according to CANopen standard
